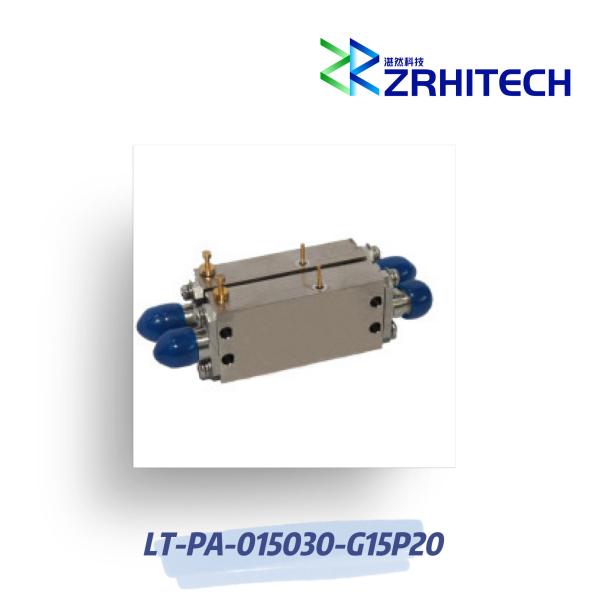

1.5 To 3 GHz 20dBm Power Amplifier with 15 dB Small Signal Gain

Brand Name : ZR Hi-Tech

Model Number : LT-PA-015030-G15P20

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : LT-PA series Power Amplifier

Application : Wireless Communication

Material : Aluminum

Temperature : -40~85℃

Frequency range : 1.5 to 3 GHz

Color : Silver

Contact Now

1.5 to 3 GHz LT-PA Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Small Signal Gain 15dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PA-015030-G15P20 from ZR is a RF Amplifier with Frequency 1.5 to 3 GHz, Small Signal Gain 15 dB, Gain Flatness ±1.5 dB, Output Power 20dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-PA-015030-G15P20 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items Specification Conditions
Part Number LT-PA-015030-G15P20
Configuration Module with Connector
Frequency Range 1.5 to 3 GHz
Small Signal Gain 15 dB
Gain Flatness ±1.5 dB
Output Power 20 dBm
Input Power 10 dBm
VSWR 2.1:1
Power Supply +15V / 220mA
Operating Temperature -40 to +70 ℃
Dimension 34.4*16.8*8.1 mm
Note: for custom specs, please contact us directly.

Outline Drawing (Unit: mm):

1.5 To 3 GHz 20dBm Power Amplifier with 15 dB Small Signal Gain
